本系列線卡，均采用PE(白色、灰色)料注射成型，彈性大，耐沖擊，絕不破裂。
本系列線卡，均為插釘式，鋼釘直接附在線卡，可大量節省工時，降低施工成本。
PE(white,grey), elasticity and shock resisting.
Inserting type, nail attached in clips, Save time and cost.
|

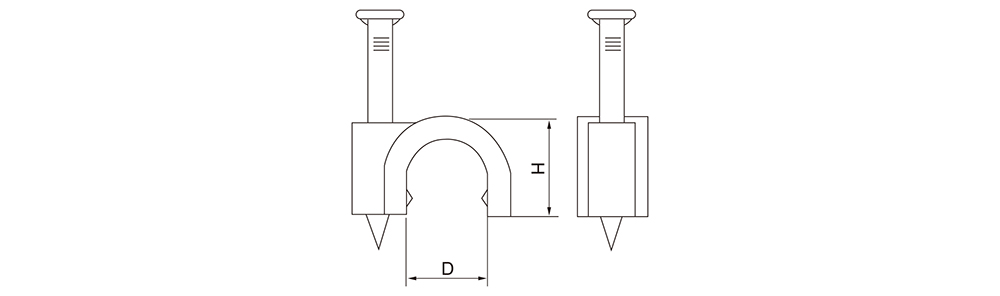

型號 ITEM.NO. |
高(H) (mm) |
圓徑 CIRCLE PATH D(mm) |
鋼釘 NAIL |
顏色 Color |
|---|---|---|---|---|
| WFR-3.5MM | 4.5 | 3.5 | 1.47×14 |
WHITE GREY BLACK BROWN DARK GREY |
| WFR-4MM | 5.3 | 4.0 | 1.7×14 | |
| WFR-5MM | 6.3 | 5.0 | 1.7×14 | |
| WFR-6MM | 7.4 | 6.0 | 1.85×16 | |
| WFR-7MM | 8.4 | 7.0 | 1.85×18 | |
| WFR-8MM | 9.4 | 8.0 | 1.95×19 | |
| WFR-9MM | 10.4 | 9.0 | 2.05×22 | |
| WFR-10MM | 11.4 | 10.0 | 2.20×23 | |
| WFR-12MM | 13.4 | 12.0 | 2.20×25 | |
| WFR-14MM | 16.4 | 14.0 | 2.35×30 | |
| WFR-16MM | 17.7 | 16.0 | 2.35×32 | |
| WFR-17MM | 19.0 | 17.0 | 2.6×38 | |
| WFR-18MM | 19.7 | 18.0 | 2.6×38 | |
| WFR-20MM | 22.2 | 20.0 | 2.7×40 | |
| WFR-22MM | 25.0 | 22.0 | 2.9×43 | |
| WFR-25MM | 27.7 | 25.0 | 3.1×50 | |
| WFR-30MM | 33.1 | 30.0 | 3.5×55 | |
| WFR-32MM | 35.6 | 32.0 | 3.5×55 | |
| WFR-35MM | 36.6 | 35.0 | 3.5×60 | |
| WFR-40MM | 45.2 | 40.0 | 3.5×65 |
